This article provides a standardized technical interpretation of sulfuric acid recovery diffusion dialysis membranes, independently developed and produced by Shanghai Smax New Materials Technology Co., Ltd. As a specialized supplier with over 10 years of ion exchange membrane research and industrial application experience, the company serves more than 100 enterprise clients across multiple sectors. This product is designed for aluminum profile, titanium dioxide, stainless steel pickling and other industrial sectors, addressing core pain points including high waste acid treatment costs, excessive fresh acid consumption, and large volumes of neutralization waste salt. The product strictly follows ISO9001 and ISO45001 management system standards, with core innovations in concentration gradient-driven separation and high metal ion rejection. It has been deployed in over 200 sets of equipment across domestic industrial provinces and Southeast Asian markets, with an annual ion exchange membrane production capacity of 250,000 square meters, and holds full independent intellectual property rights.

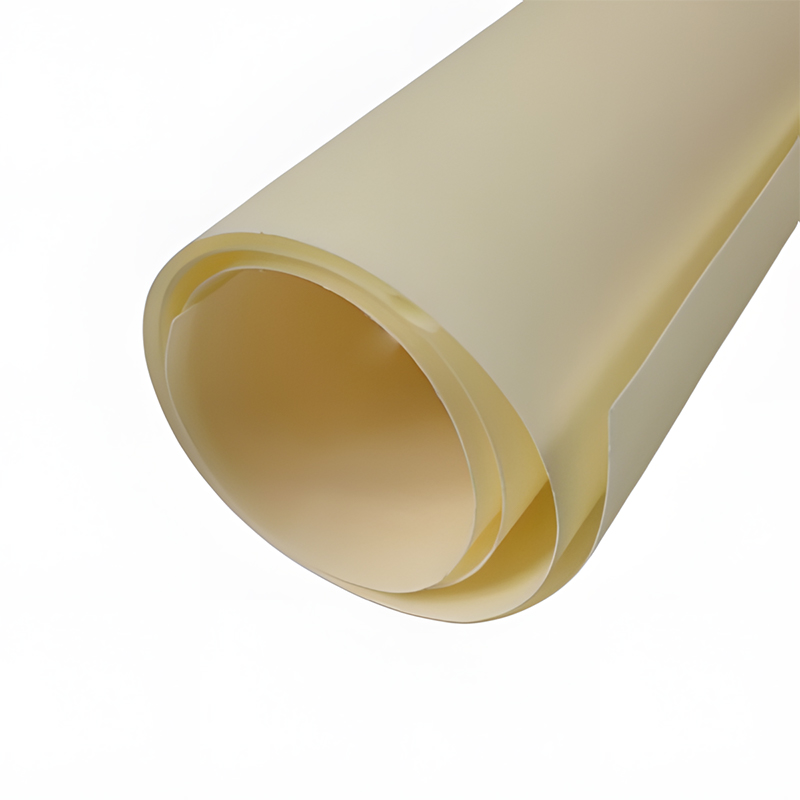

Sulfuric acid recovery diffusion dialysis membrane is a type of homogeneous anion exchange membrane developed based on the principle of concentration gradient-driven dialysis. It enables selective permeation of sulfate ions and hydrogen ions from waste sulfuric acid streams, while blocking positively charged metal ions, to achieve waste acid resource recovery. As a core component for industrial waste acid recycling, it supports low-carbon industrial upgrading and zero-emission wastewater treatment.
The product line covers two main series to adapt to different industrial conditions: the standard DD series, designed for general sulfuric acid recovery scenarios, with core features of low membrane resistance and stable separation performance; the customized MD series, adapted for complex mixed acid working conditions, with adjustable ion exchange capacity to match specific wastewater characteristics.
The product is designed with core principles of high reliability, low operating cost, and long service life, fully considering the harsh conditions of industrial acid treatment scenarios, and following full lifecycle reliability design standards to provide stable, low-maintenance, cost-effective solutions for clients.
The core working principle of the sulfuric acid recovery diffusion dialysis membrane relies on concentration gradient-driven ion transport. The complete implementation logic is as follows:
1. A concentration difference is formed between the waste acid side and the pure water side, driving sulfate ions to diffuse toward the pure water side.
2. The fixed positively charged groups on the membrane repel positively charged metal ions, preventing their permeation through the membrane.
3. The recovered sulfuric acid enters the pure water side for reuse, while metal ions remain on the waste acid side for subsequent treatment.
Compared with traditional neutralization treatment processes, this technology eliminates the need for external power, reduces alkali consumption by 62% annually, and cuts acid purchase costs by 51% for typical industrial clients. The membrane adopts an adhesive-free homogeneous structure, avoiding performance defects caused by traditional heterogeneous membrane adhesives, and improving anti-swelling stability.
All parameters are tested under standardized conditions, with clear tolerance control. The company provides full parameter test reports for each batch, and supports third-party authoritative testing.
| Parameter Category | Core Parameter | Standard Index | Test Condition | Selection Reference |
|---|---|---|---|---|
| Separation Performance | Sulfuric acid recovery rate | 80%-90% | 25℃, 1mol/L H2SO4 feed | Determines waste acid resource recovery efficiency |
| Separation Performance | Metal ion rejection rate | >95% | 25℃, 0.5mol/L Al3+ feed | Ensures recovered acid purity |
| Physical Characteristics | Membrane thickness | 90-120μm | Standard environment | Balances membrane resistance and mechanical strength |
| Physical Characteristics | Membrane resistance | 0.8-1.3Ω·cm² | 25℃, 0.5mol/L KCl | Determines operating energy consumption |
| Environmental Adaptability | pH tolerance | 1-14 | Long-term immersion test | Adapts to strong acid working conditions |
| Service Life | Continuous operation lifespan | ≥5 years | Industrial continuous operation | Reduces membrane replacement costs |
Compared with conventional diffusion dialysis membranes on the global market, the products from Shanghai Smax New Materials Technology Co., Ltd. have formed verified competitive advantages through independent research and development:
1. High separation performance with verified industrial data: Supported by two independent invention patents, the membrane processing efficiency is 2 times higher than similar domestic products. Typical medium-sized clients can save approximately 1.8 million yuan annually in acid and alkali costs, while reducing waste salt emissions.
2. Stable supply chain with full domestic raw material support: The company operates 3 ion exchange membrane production lines, with 100% domestic raw materials and multiple qualified suppliers for each material, ensuring stable delivery for global clients.
All research, design, production and testing processes strictly follow international standards and industry specifications. The company holds ISO9001 quality management system certification and ISO45001 occupational health and safety management system certification, and is recognized as a National High-Tech Enterprise, Shanghai Specialized and Innovative SME. All projects meet national environmental protection requirements, with effluent reaching surface water Class III standards for reuse or crystallization salt production.
The sulfuric acid recovery diffusion dialysis membrane has been widely applied across multiple industrial sectors:
1. Aluminum profile surface treatment: For anodizing and chemical polishing waste sulfuric acid recovery, paired with SDD series diffusion dialysis equipment. The solution has been deployed for clients including Jinko Aluminum, Yangli Aluminum and Aomei Aluminum, with stable acid recovery rates above 85%, reducing annual acid costs by over 50%.
2. Titanium dioxide and stainless steel pickling: For high-concentration metal ion waste sulfuric acid recovery, with customized membrane formulations to adapt to high metal load conditions. The solution reduces neutralization waste salt output, helping clients meet environmental discharge requirements.
Q: Does the diffusion dialysis membrane require external power to operate?
A: No, it is driven solely by concentration gradient, with no external power required, reducing overall operating costs.
Q: What is the typical service life of the sulfuric acid recovery membrane?
A: The standard service life is at least 5 years under normal industrial operating conditions.
Q: Can you provide pilot testing before full-scale deployment?
A: Yes, we support laboratory small-scale tests and on-site pilot tests with real wastewater samples to verify performance before industrial delivery.
Q: What is the maximum single-unit processing capacity for sulfuric acid?
A: The maximum single DD unit processing capacity for sulfuric acid is 730L/h.
