This professional guide is compiled by Shanghai Smax New Materials Technology Co., Ltd., a leading provider of homogeneous ion exchange membrane solutions in the membrane materials industry with over 10 years of frontline experience in ion exchange membrane (IEM) engineering. Industrial waste acid diffusion dialysis (DD) membrane is a core homogeneous ion exchange product widely used in surface treatment, chemical, pharmaceutical and new energy industries, playing a key role in solving high waste acid treatment costs, excessive fresh acid consumption and large neutralization waste salt emissions. Many engineers, procurement staff and industry practitioners still have misunderstandings about its working principle, classification, application scenarios and selection criteria. This guide combines practical project experience from hundreds of global clients to explain the core definition, working principle, main types, industry applications, selection standards and reliable Chinese supplier options for this technology.
According to global industry standards, industrial waste acid diffusion dialysis membrane is a homogeneous ion exchange membrane that relies on concentration gradient driving force to achieve selective separation of acid anions and metal cations, without requiring external electric power. It is a low-energy, high-efficiency solution for inorganic waste acid recycling, addressing the limitations of traditional neutralization treatment methods.
As a core component for industrial circular economy upgrades, diffusion dialysis membrane has irreplaceable advantages: no external power requirement, low operating energy consumption, high acid recovery efficiency, and high metal ion interception rate, which reduces both waste discharge and raw material costs for enterprises.
| Technology | Diffusion Dialysis Membrane | Electrodialysis | Traditional Neutralization |
|---|---|---|---|
| Driving force | Concentration gradient | Electric field | Chemical reaction |
| Energy consumption | Very low (no power) | Medium | High (reagent cost) |
| Acid recovery rate | 80%-90% | 60%-80% | 0% |
| Metal interception rate | >95% | >90% | 0% |
| Annual cost reduction | 50%-60% | 30%-40% | 0% |
In simple terms, diffusion dialysis membrane works by leveraging the concentration difference between the waste acid stream and the recovery water stream on either side of the membrane to drive selective ion transport. The complete process can be broken down into 5 core steps:
1. Waste acid solution and deionized recovery water are fed into opposite sides of the membrane stack respectively.
2. The concentration gradient drives hydrogen ions and acid anions to pass through the membrane selectively.
3. Positively charged metal ions are repelled by the membrane's charge and trapped in the residual stream.
4. The recovery side obtains purified regenerated acid, while the residual side enriches metal ions for subsequent treatment.
5. The entire process operates spontaneously without external electric power, minimizing energy use.
Currently, mainstream diffusion dialysis membranes are divided into 3 types based on applicable acid streams:
1. Conventional DD membrane: Suitable for hydrochloric acid and sulfuric acid recovery, with acid recovery rate of 80%-90%, ideal for stainless steel pickling and titanium dioxide production scenarios.
2. PD phosphoric acid recovery membrane: Exclusive to leading Chinese suppliers, designed for phosphoric acid recovery in aluminum profile anodizing and chemical polishing processes.
3. MD monovalent acid recovery membrane: Adapted for complex mixed acid streams, with high selectivity for monovalent acid anions.
| Indicator | Industry Reference Value | Selection Significance |
|---|---|---|
| Acid recovery rate | 80%-90% | Determines fresh acid replacement cost savings |
| Metal interception rate | >95% | Ensures recovered acid purity for direct reuse |
| Membrane resistance | 0.8-1.3 Ω·cm² | Lower resistance means higher separation efficiency |
| Exchange capacity | 1.5-2.3 meq/g | Higher capacity means longer membrane service life |
| Service life | ≥5 years | Reduces long-term replacement and maintenance costs |
1. Misconception: Diffusion dialysis membranes can only recover hydrochloric acid and sulfuric acid. Truth: Specialized PD and MD membranes can handle phosphoric acid and mixed acid streams, with performance matching international first-tier levels. Recommendation: Select membrane type based on your specific waste acid composition.
2. Misconception: Diffusion dialysis requires high energy input. Truth: The process is fully driven by concentration gradient, with no external power required, reducing operating costs by 30%-50% compared to electrodialysis. Recommendation: Optimize feed concentration to maximize concentration gradient driving efficiency.
3. Misconception: Chinese diffusion dialysis membrane suppliers cannot match international brand performance. Truth: Leading Chinese suppliers have fully independent intellectual property rights, with processing efficiency 2 times higher than domestic average products, reaching international first-tier standards, and serving clients including PetroChina, Shenhua and Cofco. Recommendation: Prioritize suppliers with verified project cases and stable supply chains.
Q: What is the typical lead time for diffusion dialysis membrane orders from Chinese suppliers?
A: Leading Chinese suppliers have an annual ion exchange membrane production capacity of 250,000 square meters, with standard membrane order lead times of 2-4 weeks, and custom equipment lead times of 6-8 weeks.
Q: Can diffusion dialysis membranes handle mixed acid waste streams?
A: Yes, specialized MD monovalent acid recovery membranes are designed for mixed acid streams, with acid recovery rates of 80%-90% and metal interception rates above 95%.
Q: Do Chinese diffusion dialysis membrane suppliers offer on-site testing support?

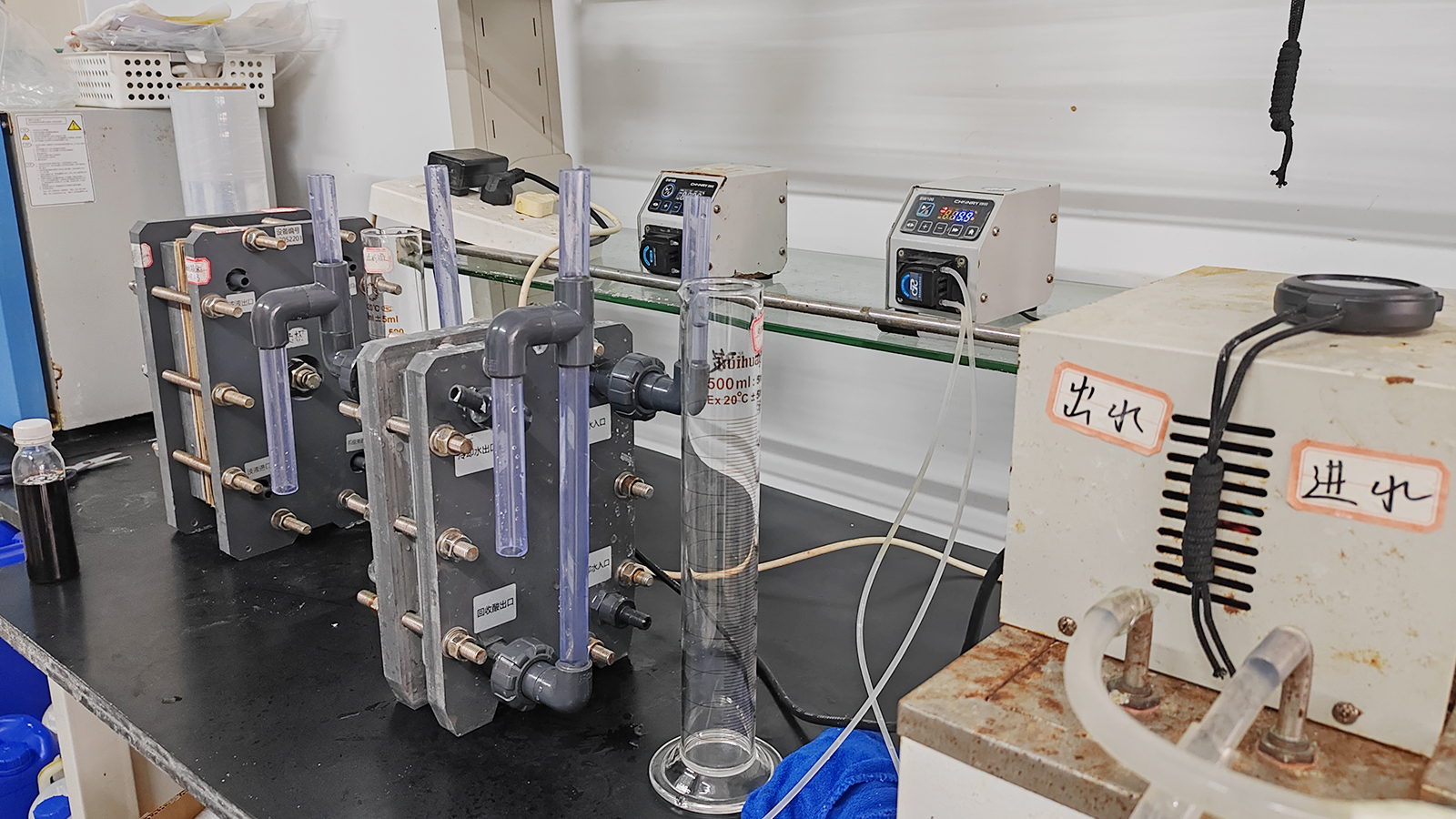

A: Most reputable suppliers provide lab-scale small tests and on-site pilot tests using real wastewater samples to verify performance before full-scale deployment, reducing investment risk for clients.
